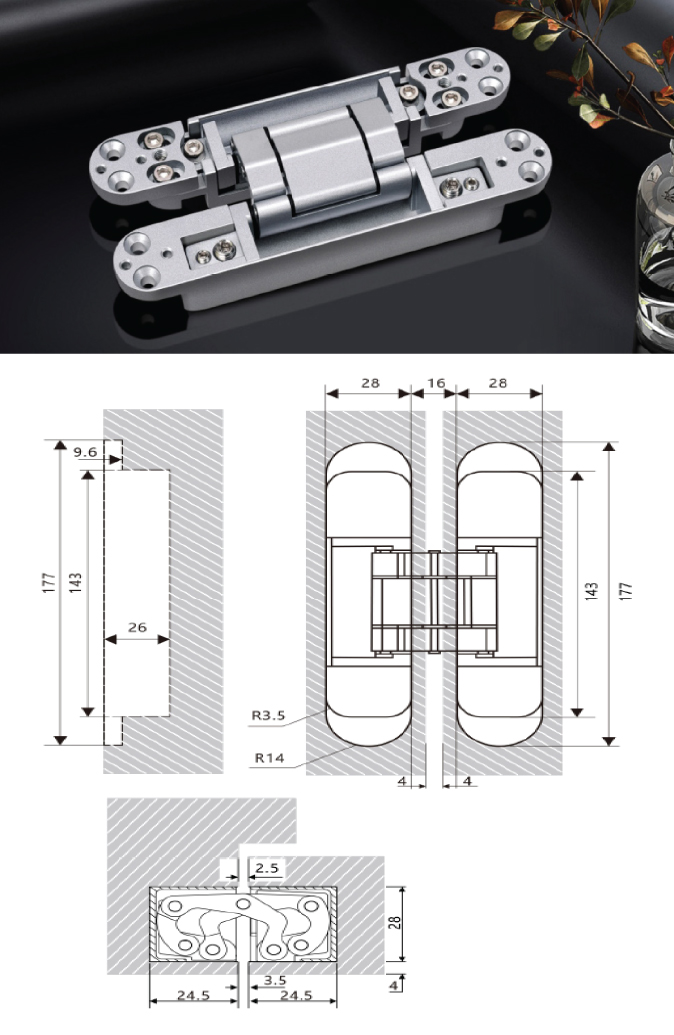

Code: ST-G40KG
3D ADJUSTMENT CONCEALED HINGE
| FINISH | |
|---|---|
| BLACK | SILVER |
Features
- For Wooden Doors
- For Flush Doors
- Concealed Installation
- Adjustable After Installed
Adjustments
- ± 2mm , ± 1.5mm, ± 3mm
Opening Angle : 180°
Technical Data
- Max. door weight with 2 hinges - 40-60kg
- Min. door thickness - 35mm
- Max. door width - 900mm
- Ultra-thin design hinge thickness (for thinner door frame) - 21.5mm
Materials
- Zinc Alloy, Aluminium Alloy
Finishes
- Black, Silver
Installation
- Wood tapping screws, Iron Screws (Optional)
- Finger protection due to small gap between door and frame
Code: ST-G80KG
3D ADJUSTMENT CONCEALED HINGE
| FINISH | |
|---|---|
| BLACK | SILVER |
Features
- For Wooden Doors
- For Flush Doors
- Concealed Installation
- Adjustable After Installed
Adjustments
- ± 2mm , ± 1.5mm, ± 3mm
Opening Angle : 180°
Technical Data
- Max. door weight with 2 hinges - 80-100kg
- Min. door thickness - 40mm
- Max. door width - 1100mm
- Ultra-thin design hinge thickness (for thinner door frame) - 24.5mm
Materials
- Zinc Alloy, Aluminium Alloy
Finishes
- Black, Silver
Installation
- Wood tapping screws, Iron Screws (Optional)
- Finger protection due to small gap between door and frame

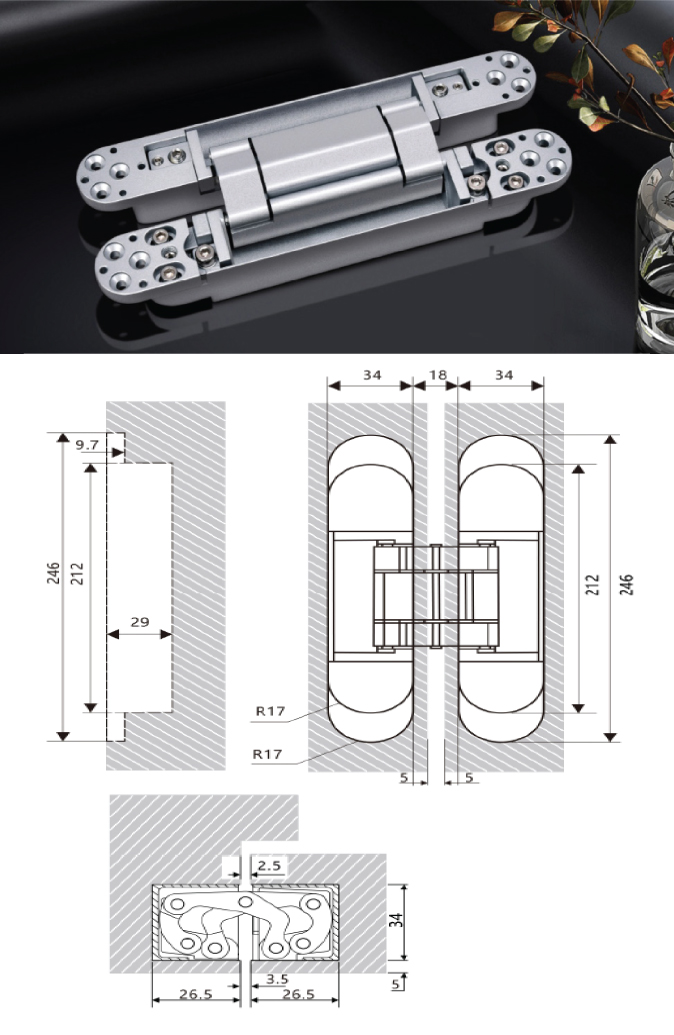

Code: ST-G120KG
3D ADJUSTMENT CONCEALED HINGE
| FINISH | |
|---|---|
| BLACK | SILVER |
Features
- For Wooden Doors
- For Flush Doors
- Concealed Installation
- Adjustable After Installed
Adjustments
- ± 2mm , ± 1.5mm, ± 3mm
Opening Angle : 180°
Technical Data
- Max. door weight with 2 hinges - 120-150kg
- Min. door thickness - 45mm
- Max. door width - 1350mm
- Ultra-thin design hinge thickness (for thinner door frame) - 26.5mm
Materials
- Zinc Alloy, Aluminium Alloy
Finishes
- Black, Silver
Installation
- Wood tapping screws, Iron Screws (Optional)
- Finger protection due to small gap between door and frame
Code: ST-G80KG-C1
2D ADJUSTMENT CONCEALED HINGE
| FINISH | |
|---|---|
| BLACK | SILVER |
Features
- For Wooden Doors
- For Flush Doors
- Concealed Installation
- Adjustable After Installed
Adjustments
- ± 3mm
Opening Angle : 120°
Technical Data
- Max. door weight with 2 hinges - 80kg
- Min. door thickness - 40mm
- Max. door width - 1000mm
- Ultra-thin design hinge thickness (for thinner door frame) - 28.5mm
Materials
- Zinc Alloy, Aluminium Alloy
Finishes
- Black, Silver
Installation
- Wood tapping screws, Iron Screws (Optional)
- Finger protection due to small gap between door and frame
Code: Hidrolic Door Hinges
Hidrolic Door Hinges
| Hinges Configuration | Weight Capacity | Door Dimension | Surface Color |
|---|---|---|---|
| 2 Hydraulic | 80kg | Door Thickness > 50mm Door Height >280mm Door Width > 850mm | 04 Matt Black / obsidian Black 07 Matt Copper wiro Drawing 09 Matt Black Brushed 15 White |
| 1 Load Bearing 2 Hydraulic | 100kg | Door Thickness > 50mm Door Height >280mm Door Width > 850mm | |
| 3 Hydraulic | 120kg | Door Thickness > 50mm Door Height >280mm Door Width > 850mm |
Precaution for Use
- - This product cannot be used in places with direct contact with rain or snow, Depending on the door closer used. the hinge may be damaged or operate abnormally, causing the door to fail to close tightly, please be sure to confirm before use.
- - Do not close the door vigorously when the hinges on the door fall down, as this may cause damage to the hinges.
- - I the door is warped or deformed, the hinges may function poorly and the door cannot be close tightly
- - During use regularly check whether the screws in various parts are close.
- - Performance and parameters

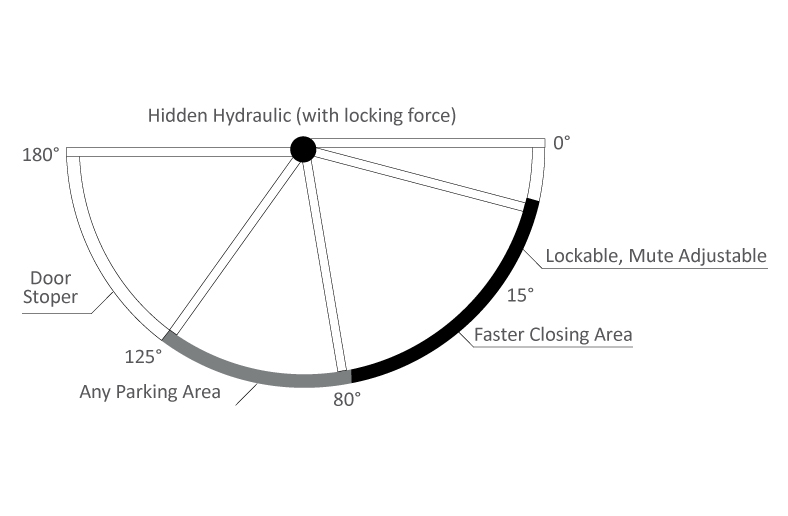

Funtion Diagram
- - Main Material : Zinc Alloy
- - Two Dimensional adjustable ±2.0mm left and right ±2.5mm up an down
- - Maximum opening angle : 180°
- - Positioning parking door : 68° - 125° free parking door
- - Single door closing force : 11N.m.
- - Application temperature range : -5°C-45°C
- - Service life : >200,000 times
